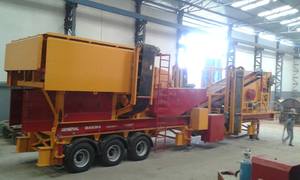

Mobile Screening and Crushing Plant - General 03 for sale. - Christiana

Tuesday, 27 March 2018

Item details

City: Christiana, North West
Offer type: Sell
Price: USD 270,000


Contact name Nilufer
Phone +905492922121

Item description

Feeding range 1500 x 1300mm
Rotor: 1400 x 1500 mm Crusher There are 2 special chambers that provide thinning.
Motor Power 200 Kw - 250 Kw Thanks to special adjustment blocks, Primer has been collected in one machine with secondary function.
It is unprecedented with high reduction rates of up to 50 times.
Main Conveyor Belt System 1000 mm conveyor belt rubber.
Vibrating Screen System High Capacity Type
Dimension: 2000 x 5000mm
Motor Power 22 Kw Floor Number: 3-4 Floors
Under-Screen Stock Conveyor 1000 mm Folding type
Stock Conveyor 2 pieces 800 mm Folding type
Return system is provided with 2 pieces of 600 mm 2 conveyor belts.
Mobile Chassis System 3 Mobile system with axle scissors.
Hydraulic system has 6 hydraulic foot mechanisms. After these feet are locked, they are strengthened with 6 Fixed feet.
The crusher also has 2 lift pistons for opening and closing. These 2 Pistons are controlled by special control system. The product size is determined by 2 pistons which determine the pandul setting and the product size and also with a special arm.
Hydraulic Power System 125 Liter
Magnetic Conveyor Belt 600 mm (Optional
Panel Material is Siemens Brand
Board System has Abb Soft Starter system and special control system.
Remote Control (Cable Control System) can be done with the crusher control. It can self-assemble by amperage system.
Generator System Optional, 6 Cylindrical diesel engine and Marelli Alternator of Cummins, Perkins, Doosan, Deutz brands. (Optional
Capacity Breaking Material and Feeding, It is 250-300 ton Capacity according to final product sizes.
Dust Removal System In order to suppress the dust in the conveyors, high pressure water is sprayed to prevent dusting. (Optional
Feeders are Vibromotor, Emtas, Italvibras, Oli Brand.
Main Belt Drive Drum Rubber Coated and Threaded.
Electric Motors are Gamak, Emtaş, Inter Mark.
Gearboxes are special gearboxes with 3 gears.
Conveyor Belt Tires Derby, Eksaş and Yücel Brand.
Roller Bearings: SKF or equivalent Bearings Used for flat products are Ereğli Iron and Steel Products and are of A1 Size.
By-pass system (optional
Magnetic magnet (optional
Generator System (Optional
Additional reservoir to feed with truck (Optional
Dust Removal System (Optional
Frequency Control System is used instead of Soft Starter (Optional
This system allows to adjust the run time of the crusher. In addition, with this generator, it is possible to work without load, low generator selection and low fuel consumption. Approximate fuel consumption 19 - 21 Lt / h (Optional
All our products are European Union CE certified.
Total Weight: 60,000 Kg
Shipping Dimensions: Width 4.200 mm x Length 17,000 mm x Height 4,500 mm
We are proud to offer you GENERAL 03 with 35 years of experience.
Our Company General Makina is located in Izmir/Turkey.
